The Mitsubishi Electric MGPEZ-140YJA three-phase system is a high-capacity ducted climate control solution designed to efficiently cool large spaces such as large homes, offices, or commercial premises. Its integrated design with a compact indoor unit and robust outdoor unit allows for discreet installation in false ceilings, providing uniform thermal comfort in both cooling and heating modes throughout the year.
Equipped with advanced Inverter technology and eco-friendly R32 refrigerant, this unit stands out for its low energy consumption, quiet operation, and homogeneous air distribution. Additionally, its compatibility with optional WiFi control allows for mobile management of the climate control for even smarter comfort.
Mitsubishi Electric MGPEZ-140YJA Features
High energy efficiency:
The Inverter technology automatically modulates the compressor power according to thermal demand, reducing electricity consumption and optimizing performance in both cooling and heating with high SEER and SCOP energy values.
Powerful and stable climate control:
With a nominal capacity of approximately 13.4 kW in cooling and 15.0 kW in heating, this system is ideal for cooling large areas with constant power and quick response, adapting to ambient temperature variations.
Uniform air distribution:
Designed to integrate with duct networks, it allows for homogeneous air diffusion in all connected areas, eliminating cold or hot spots and providing balanced thermal comfort in every room.
Quiet operation:
The reduced sound levels of the indoor unit ensure a quiet environment even during continuous operation, perfect for settings that require low acoustic levels such as bedrooms, meeting rooms, and rest areas.
Simple control and maintenance:
Includes a remote control with full functions and allows for the incorporation of optional WiFi connectivity, facilitating use from mobile applications. Additionally, easily accessible filters simplify cleaning and maintenance tasks.
Technical specifications:
- Indoor model: Mitsubishi PEAD-SM140JA
- Outdoor model: Mitsubishi PUZ-SM140YKA
- Nominal cooling capacity: ~13.4 kW (~11,524 frig/h)
- Nominal heating capacity: ~15.0 kW (~12,900 kcal/h)
- Type: Ducted air conditioner
- Mode: Cooling and heating
- Refrigerant: R32 (3.6 kg precharged)
- Electric consumption (Cooling/Heating): ~4.96 kW / ~4.28 kW Optimal
- EER / COP: 2.70 / 3.50
- SEER / SCOP: 210.1% / 150.2%
- Air flow indoor unit: 32-46 m³/min
- Static pressure: 35-150 Pa
- Sound level indoor unit: 34/38/43 dB(A)
- Sound level outdoor unit: 55 dB(A)
- Dimensions indoor unit: 250 × 1,600 × 732 mm
- Weight indoor unit: ~44 kg
- Dimensions outdoor unit: 981 × 1,050 × 330 mm (+40)
- Weight outdoor unit: ~85 kg
- Installation: Ducts in false ceiling

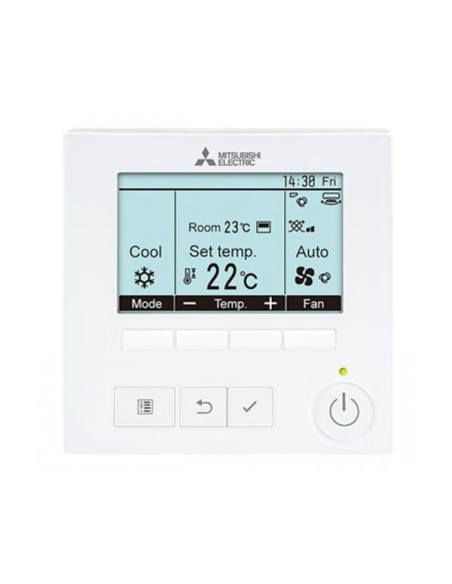

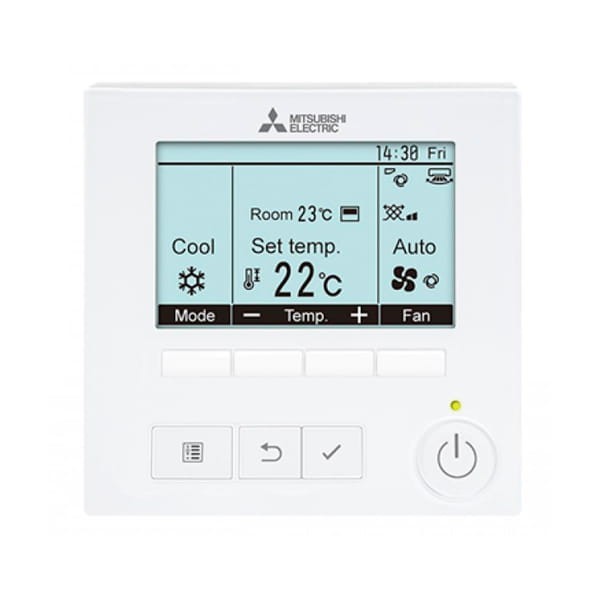

- Control: PAR-40/41 remote included; optional WiFi
Product shipping:
The Mitsubishi Electric MGPEZ-140YJA set is delivered packaged and ready for installation by an authorized technician. It includes indoor and outdoor units, control remote, and official technical documentation for professional and safe commissioning.
Warranty conditions
At ClimaMania, we sell new Mitsubishi Electric products from the official network in Spain. This system comes with three years of official warranty, managed by the Official Technical Service of Mitsubishi Electric for your peace of mind.
It is recommended to keep the purchase invoice for any warranty management throughout the equipment's useful life.
