HAIER AD105S2SM3FA(H) + 1U105S2SS1FA HEALT CONNECT Ducted Air Conditioner

AD105S2SM3FAHC
€1,595.55
Tax included

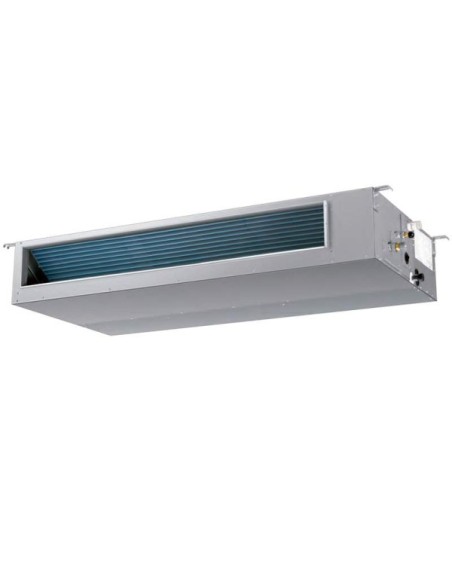

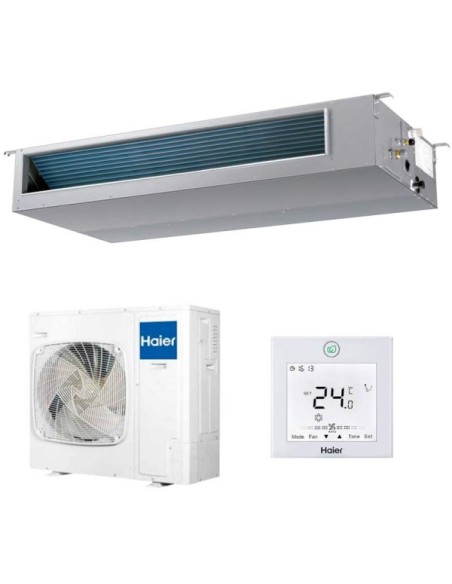

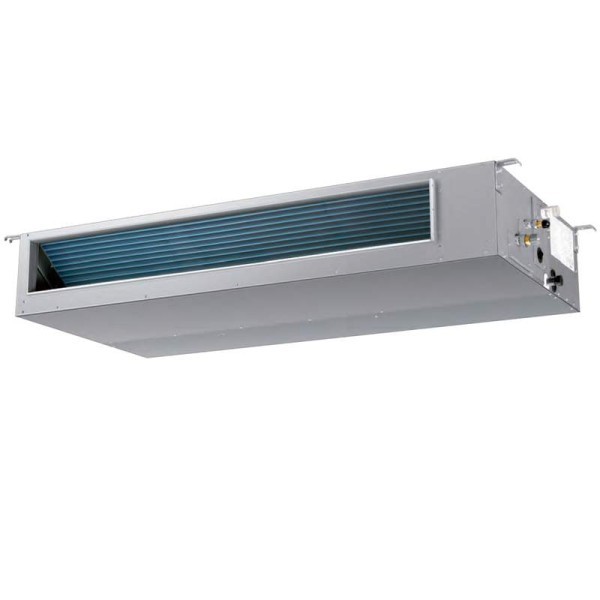

HAIER Ducted Air Conditioner AD105S2SM3FA(H) + 1U105S2SS1FA HEALT CONNECT

The HAIER ducted air conditioner AD105S2SM3FA(H) + 1U105S2SS1FA HEALT CONNECT is a ducted unit with a heat pump that offers cooling and heating with an unbeatable price-quality ratio. The Healt Connect series offers Wifi connection in its ducted air conditioning unit as standard for you to enjoy the best comfort.

  • Cooling Capacity: 8,170 Frig/h
  • Heating Capacity: 8,772 Kcal/h
  • Energy Class: A++
  • Indoor unit dimensions: 1500x700x248mm (Width x Depth x Height)

Picked up at the store

Available for pickup fromThursday 15 January

Home delivery

Receive it entre Thursday 15 January y Tuesday 20 January.

Do you want to know if this product is ideal for your stay?



HAIER Ducted Air Conditioner AD105S2SM3FA(H) + 1U105S2SS1FA HEALT CONNECT

The HAIER Ducted Air Conditioner AD105S2SM3FA(H) + 1U105S2SS1FA HEALT CONNECT is a high-efficiency climate control system designed to provide maximum comfort, reliability, and energy savings in large spaces such as offices, hotels, clinics, gyms, restaurants, and large homes. Its ducted design allows for a completely discreet integration into the ceiling, maintaining the clean and modern aesthetics of the space.

This unit is part of the HAIER range with HEALT CONNECT technology, which allows for intelligent and efficient climate control, improving indoor air quality and providing a healthy environment for all occupants. It incorporates advanced Inverter technology and uses eco-friendly R32 refrigerant, ensuring stable, quiet, and environmentally friendly operation.

Main Features

Centralized and Uniform Climate Control

The system distributes air evenly throughout all rooms via ducts, ensuring a stable and comfortable temperature even in large spaces or with high thermal loads.

High-Efficiency Inverter Technology

The Inverter compressor automatically adjusts power according to the actual demand of the space, reducing electricity consumption, maintaining stable temperature, and avoiding abrupt starts and stops, which increases the durability of the unit.

Eco-Friendly R32 Refrigerant

The use of R32 refrigerant allows for superior performance with less environmental impact, complying with European energy efficiency and sustainability regulations.

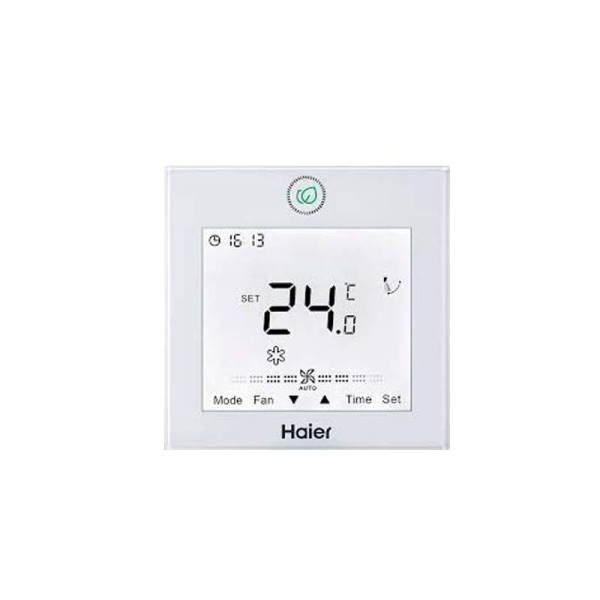

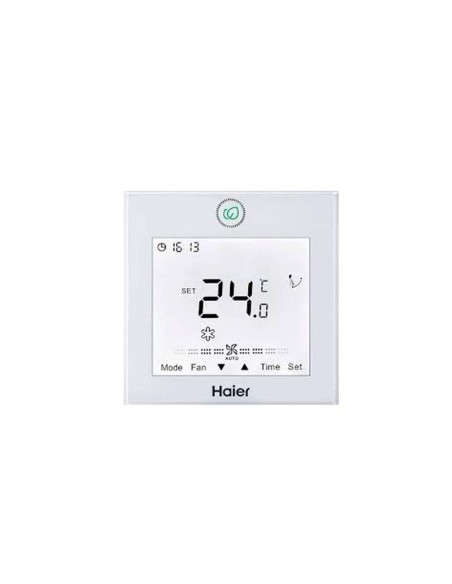

Intelligent HEALT CONNECT Control

Allows for remote and precise climate management, monitoring temperature, humidity, and air quality, providing a healthy and comfortable environment at all times.

Quiet Operation

Designed for minimal noise levels, making it suitable for offices, clinics, hotels, meeting rooms, or any space where acoustic comfort is a priority.

Configurable Static Pressure

The unit allows for adjusting static pressure to adapt to different duct configurations, ensuring optimal air distribution even in complex installations.

Technical Data

  • Brand: HAIER
  • Model: AD105S2SM3FA(H) + 1U105S2SS1FA HEALT CONNECT
  • Type: Ducted air conditioner with heat pump
  • Technology: Inverter
  • Refrigerant: R32
  • Nominal Cooling Power: Approximately 10.5 kW
  • Nominal Heating Power: Approximately 12.0 kW
  • Energy Rating: High seasonal efficiency
  • Static Pressure: Configurable
  • Indoor Unit Noise Level: Low
  • Power Supply: Three-phase 400 V
  • Installation: In false ceiling via duct network
  • Recommended Area: Up to 100–120 m² (depending on insulation and orientation)

Recommended Applications

This unit is ideal for offices, hotels, clinics, gyms, restaurants, and large homes that require powerful, efficient, and fully integrated climate control in the ceiling, offering comfort and aesthetics in all rooms.

Installation and Maintenance

Installation should be carried out by qualified professionals, as it requires prior design of the duct network and correct configuration of static pressure. Periodic maintenance, including filter cleaning and technical inspections, ensures optimal performance, energy efficiency, and long service life of the system.

Product Shipping

The HAIER AD105S2SM3FA(H) + 1U105S2SS1FA HEALT CONNECT is delivered fully packaged and ready for installation. It includes a user manual and official technical documentation from the manufacturer.

Warranty Conditions

At ClimaMania, we sell new HAIER products sourced from the official network in Spain. This unit comes with the official manufacturer's warranty, managed by its Official Technical Service. It is recommended to keep the purchase invoice for any management during the warranty period.

Power (Frig/h)
8170
Power in Heating mode (Kcal/h)
8772
Power (Kw)
9,5
WIFI
Included
Energy efficiency
A++
SEER
6,1
SCOP
3,8
Refrigerating gas
R-32
Food voltage
230 V
Sound level inside unit (dB)
37
Dimensions inside unity (Height/Width/Depth) mm
248 / 1500 / 700
Dimensions outside u. (Height/Width/Depth) mm
760 / 920 / 372
Refrigerant connection diameter
3/8" - 5/8"
EAN Code
6936294513466
Manufacturer Reference
CONDUCTOS 105HC MONO
